High-Level Architecture

1. User logs into Laravel via Keycloak (Socialite or OIDC).
2. Laravel optionally ensures a row exists in Flarum’s users table (email/username).
3. Laravel opens a popup to Flarum’s sso-relay.html.
4. Relay page silently hits /auth/<provider> (FoF OAuth Generic) → Flarum session is created using Keycloak → relay closes and returns control.

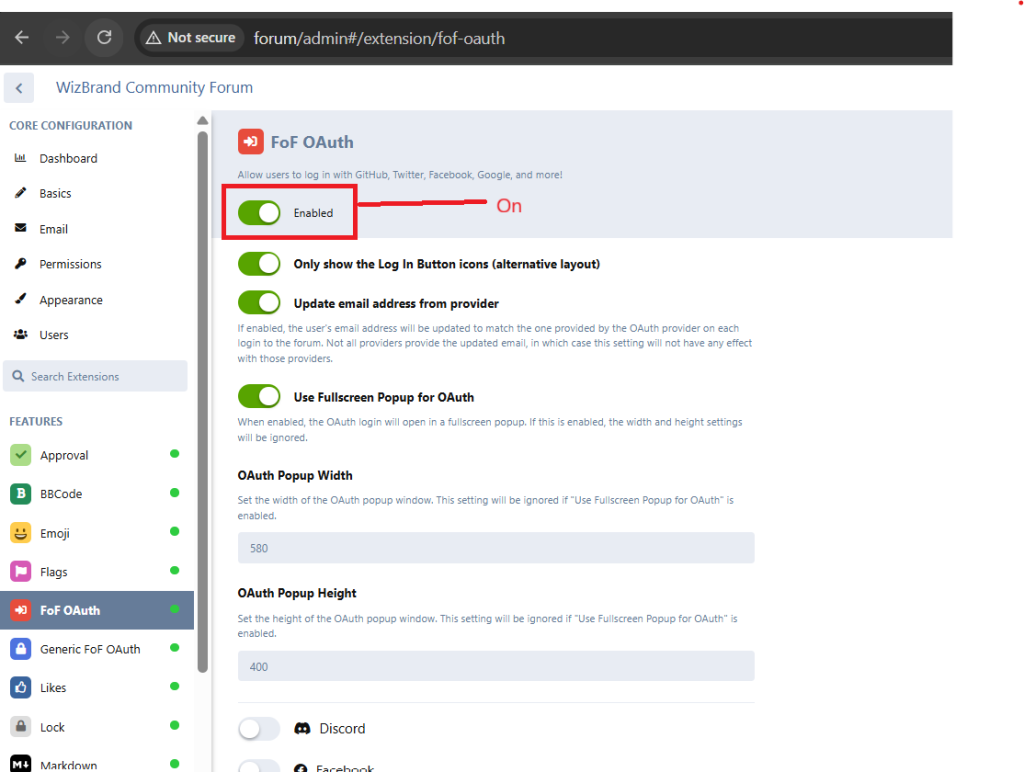

Step 1 — Install Flarum Extensions

Then enable in Flarum Admin → Extensions:

• FoF OAuth
• OAuth Generic (blt950/oauth-generic)
• (FoF Extend is a dependency layer)
• Generic Enable


php flarum cache:clear

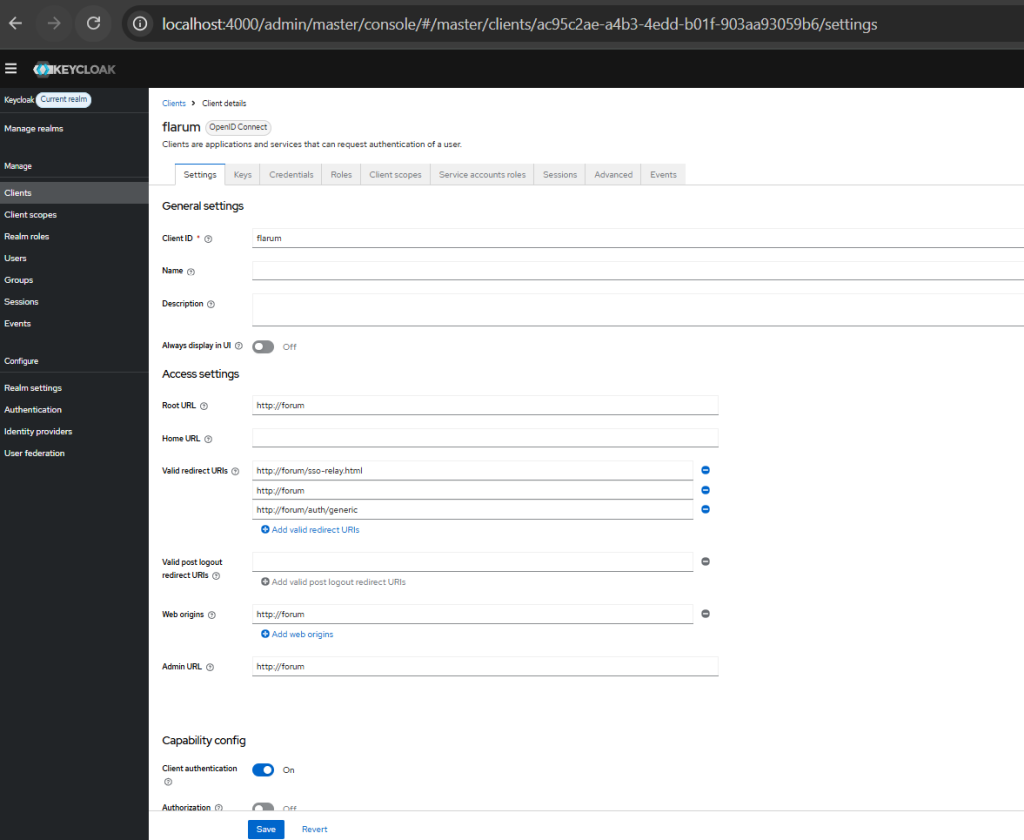

Step 2 — Create a Keycloak Client for Flarum

In Keycloak (Realm → Clients → Create):

Client Type: OpenID Connect

Client ID: flarum (example)

Access Type: Public (often enough) or Confidential (then keep client secret)

Valid Redirect URIs:

http://forum/auth/generic

http://forum/*

Web Origins:

http://forum

Mappers (recommended):

preferred_username (built-in)

email (built-in; set as “Email” claim)

Ensure standard OIDC scopes include email, profile

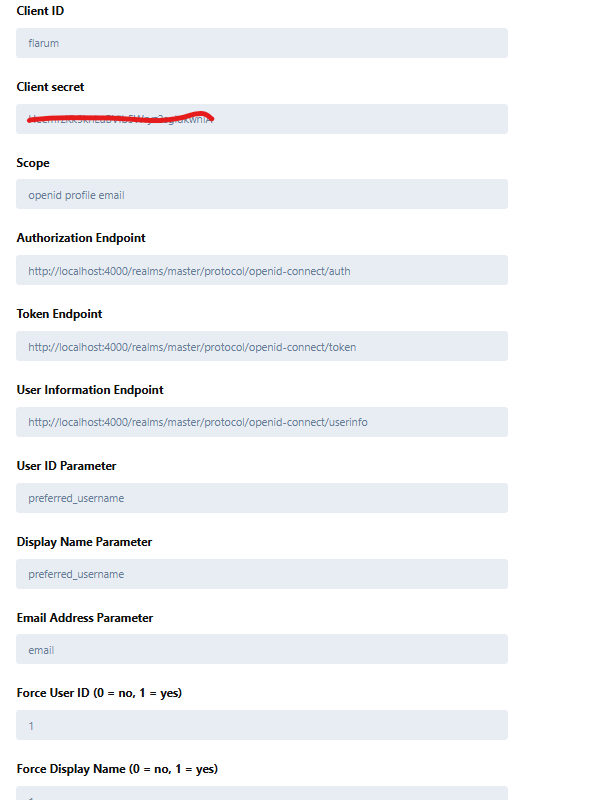

Step 3 — Configure Flarum OAuth Provider (OAuth Generic)

Open Flarum Admin → Extensions → OAuth Generic and configure a provider, e.g. Keycloak:

• Authorization URL:
  http://localhost:8080/realms/<REALM>/protocol/openid-connect/auth
• Token URL:
  http://localhost:8080/realms/<REALM>/protocol/openid-connect/token
• User Info URL:
  http://localhost:8080/realms/<REALM>/protocol/openid-connect/userinfo
• Client ID / Secret: from your Keycloak client
• Scopes: openid email profile
• Button text/icon: “Login with Keycloak”

If you use FoF OAuth’s Keycloak recipe, configure that instead. OAuth Generic works universally.

Step 4 — Add the SSO Relay Page in Flarum

Create public/sso-relay.html in the forum host:

When we apply it in code, then remove # from the code
#const FORUM_ORIGIN = location.origin; // e.g., http://forum
#const OAUTH_PATH = ‘/auth/generic’;

Step 5 — Add the SSO Launcher in Laravel (popup)

Step 6 — (Optional) Pre-provision Flarum users from Laravel

'connections' => [
  // ...
  'flarum' => [
    'driver' => 'mysql',
    'host' => env('FLARUM_DB_HOST', 'localhost'),
    'port' => env('FLARUM_DB_PORT', '3306'),
    'database' => env('FLARUM_DB_DATABASE', 'flarum'),
    'username' => env('FLARUM_DB_USERNAME', 'root'),
    'password' => env('FLARUM_DB_PASSWORD', ''),
    'charset' => 'utf8mb4',
    'collation' => 'utf8mb4_unicode_ci',
    'prefix' => '',
    'strict' => false,
  ],
],

6.2 .env

FLARUM_DB_HOST=localhost
FLARUM_DB_PORT=3306
FLARUM_DB_DATABASE=flarum
FLARUM_DB_USERNAME=root
FLARUM_DB_PASSWORD=

6.3 Service to ensure user in Flarum (app/Services/FlarumBridge.php)

<?php
namespace App\Services;

use Illuminate\Support\Facades\DB;
use Illuminate\Support\Str;

class FlarumBridge
{
    public function ensureUser(string $email, ?string $username, ?string $displayName = null): int
    {
        $db = DB::connection('flarum');

        if ($existing = $db->table('users')->where('email', $email)->first()) {
            if ($displayName && $this->hasCol($db, 'users', 'nickname')) {
                $db->table('users')->where('id', $existing->id)->update(['nickname' => $displayName]);
            }
            return (int) $existing->id;
        }

        $candidate    = $username ?: (explode('@', $email)[0]);
        $base         = substr(preg_replace('/[^a-z0-9_]/i', '_', $candidate), 0, 30) ?: ('user_'.Str::random(6));
        $safeUsername = $this->unique($db, $base);

        $cols = $this->cols($db, 'users');
        $now  = now()->toDateTimeString();

        $data = [];
        if (in_array('username', $cols, true)) $data['username'] = $safeUsername;
        if (in_array('email', $cols, true))    $data['email']    = $email;
        if ($displayName && in_array('nickname', $cols, true)) $data['nickname'] = $displayName;
        if (in_array('is_email_confirmed', $cols, true)) $data['is_email_confirmed'] = 1;
        if (in_array('password', $cols, true)) $data['password'] = password_hash(Str::random(32), PASSWORD_BCRYPT);
        if (in_array('joined', $cols, true))   $data['joined']   = $now;

        return (int) $db->table('users')->insertGetId($data);
    }

    protected function unique($db, string $base): string {
        $name = $base; $i = 1;
        while ($db->table('users')->where('username', $name)->exists()) {
            $suf = '_'.$i++; $name = substr($base, 0, max(1, 30 - strlen($suf))) . $suf;
        }
        return $name;
    }
    protected function cols($db, string $table): array {
        $rows = $db->select("SHOW COLUMNS FROM `{$table}`");
        return array_map(fn($r) => $r->Field, $rows);
    }
    protected function hasCol($db, string $table, string $col): bool {
        return in_array($col, $this->cols($db, $table), true);
    }
}

6.4 Keycloak helpers (Admin lookup + /userinfo) app/Services/KeycloakService.php

<?php
namespace App\Services;

class KeycloakService
{
    protected function base(): string {
        $b = trim((string) env('KEYCLOAK_BASE_URL', ''));
        if ($b === '') throw new \Exception('KEYCLOAK_BASE_URL missing');
        if (!preg_match('~^https?://~i', $b)) $b = 'http://' . $b;
        return rtrim($b, '/');
    }
    protected function realm(): string {
        $r = trim((string) env('KEYCLOAK_REALM', ''));
        if ($r === '') throw new \Exception('KEYCLOAK_REALM missing');
        return $r;
    }

    public function getAdminAccessToken(): string {
        $url = $this->base()."/realms/".$this->realm()."/protocol/openid-connect/token";
        $post = [
          'client_id'     => env('KEYCLOAK_ADMIN_CLIENT_ID'),
          'client_secret' => env('KEYCLOAK_ADMIN_CLIENT_SECRET'),
          'grant_type'    => 'client_credentials',
        ];
        $ch = curl_init($url);
        curl_setopt_array($ch, [CURLOPT_POST=>true, CURLOPT_POSTFIELDS=>http_build_query($post), CURLOPT_RETURNTRANSFER=>true]);
        $resp = curl_exec($ch); if (curl_errno($ch)) throw new \Exception(curl_error($ch));
        $code = curl_getinfo($ch, CURLINFO_HTTP_CODE); curl_close($ch);
        if ($code!==200) throw new \Exception("Admin token HTTP {$code}: {$resp}");
        $j = json_decode($resp,true); if (empty($j['access_token'])) throw new \Exception('No admin access_token');
        return $j['access_token'];
    }

    public function findUserByEmail(string $email): ?array {
        $token = $this->getAdminAccessToken();
        $url = $this->base()."/admin/realms/".$this->realm()."/users?email=".urlencode($email)."&exact=true";
        $ch = curl_init($url);
        curl_setopt_array($ch,[CURLOPT_HTTPHEADER=>['Authorization: Bearer '.$token],CURLOPT_RETURNTRANSFER=>true]);
        $resp = curl_exec($ch); if (curl_errno($ch)) throw new \Exception(curl_error($ch));
        $code = curl_getinfo($ch,CURLINFO_HTTP_CODE); curl_close($ch);
        if ($code!==200) throw new \Exception("Users search HTTP {$code}: {$resp}");
        $arr = json_decode($resp,true) ?: [];
        return $arr[0] ?? null;
    }

    public function getUserInfo(string $userAccessToken): array {
        $url = $this->base()."/realms/".$this->realm()."/protocol/openid-connect/userinfo";
        $ch = curl_init($url);
        curl_setopt_array($ch,[CURLOPT_HTTPHEADER=>['Authorization: Bearer '.$userAccessToken],CURLOPT_RETURNTRANSFER=>true]);
        $resp = curl_exec($ch); if (curl_errno($ch)) throw new \Exception(curl_error($ch));
        $code = curl_getinfo($ch,CURLINFO_HTTP_CODE); curl_close($ch);
        if ($code!==200) throw new \Exception("userinfo HTTP {$code}: {$resp}");
        $d = json_decode($resp,true) ?: [];
        return [
          'email' => $d['email'] ?? null,
          'name'  => trim(($d['given_name'] ?? '').' '.($d['family_name'] ?? '')) ?: ($d['name'] ?? ($d['preferred_username'] ?? null)),
          'preferred_username' => $d['preferred_username'] ?? null,
        ];
    }
}

6.5 Controller endpoint routes/web.php

Route::post('/forum/provision', [\App\Http\Controllers\ForumProvisionController::class, 'goToForum'])
  ->middleware('auth')
  ->name('forum.provision');

Controller app/Http/Controllers/ForumProvisionController.php:

<?php
namespace App\Http\Controllers;

use Illuminate\Http\Request;
use Illuminate\Support\Facades\Log;
use App\Services\KeycloakService;
use App\Services\FlarumBridge;

class ForumProvisionController extends Controller
{
    public function goToForum(Request $request, KeycloakService $kc, FlarumBridge $flarum)
    {
        $rid = bin2hex(random_bytes(6));
        Log::info('[ForumSSO] start', ['rid'=>$rid,'url'=>$request->fullUrl(),'user_id'=>optional($request->user())->id]);

        // Try user token → /userinfo
        $email=null;$name=null;$pref=null;
        $userAccessToken = session('kc_access_token');
        if ($userAccessToken) {
            try { $info=$kc->getUserInfo($userAccessToken); $email=$info['email']??null; $name=$info['name']??null; $pref=$info['preferred_username']??null; }
            catch (\Throwable $e) { Log::warning('[ForumSSO] userinfo failed', ['rid'=>$rid,'err'=>$e->getMessage()]); }
        }

        // Fallback: admin lookup using local user email
        if (!$email) {
            $authEmail = optional($request->user())->email;
            if (!$authEmail) return response()->json(['ok'=>false,'error'=>'No email'], 422);
            $u = $kc->findUserByEmail($authEmail);
            if (!$u) return response()->json(['ok'=>false,'error'=>'Keycloak user not found'], 404);
            $email = $u['email'] ?? $authEmail;
            $name  = trim(($u['firstName'] ?? '').' '.($u['lastName'] ?? '')) ?: ($u['username'] ?? $authEmail);
            $pref  = $u['username'] ?? null;
        }

        $flarumId = $flarum->ensureUser($email, $pref, $name);
        Log::info('[ForumSSO] flarum ensureUser ok', ['rid'=>$rid,'flarum_user_id'=>$flarumId]);

        return response()->json(['ok'=>true,'flarum_id'=>$flarumId,'next'=>'http://forum/sso-relay.html']);
    }
}

Step 7 — Store Keycloak Tokens on Callback (Laravel)

In your Keycloak callback, after Socialite returns the user, store to session:

session([
  'kc_access_token'  => $keycloakUser->token,
  'kc_refresh_token' => $keycloakUser->refreshToken ?? null,
  'kc_id_token'      => property_exists($keycloakUser, 'idToken') ? $keycloakUser->idToken : null,
  'kc_profile'       => $keycloakUser->user,
]);
